User Interface Software

Graphical User Interfaces for commissioning, controlling and programming our products.

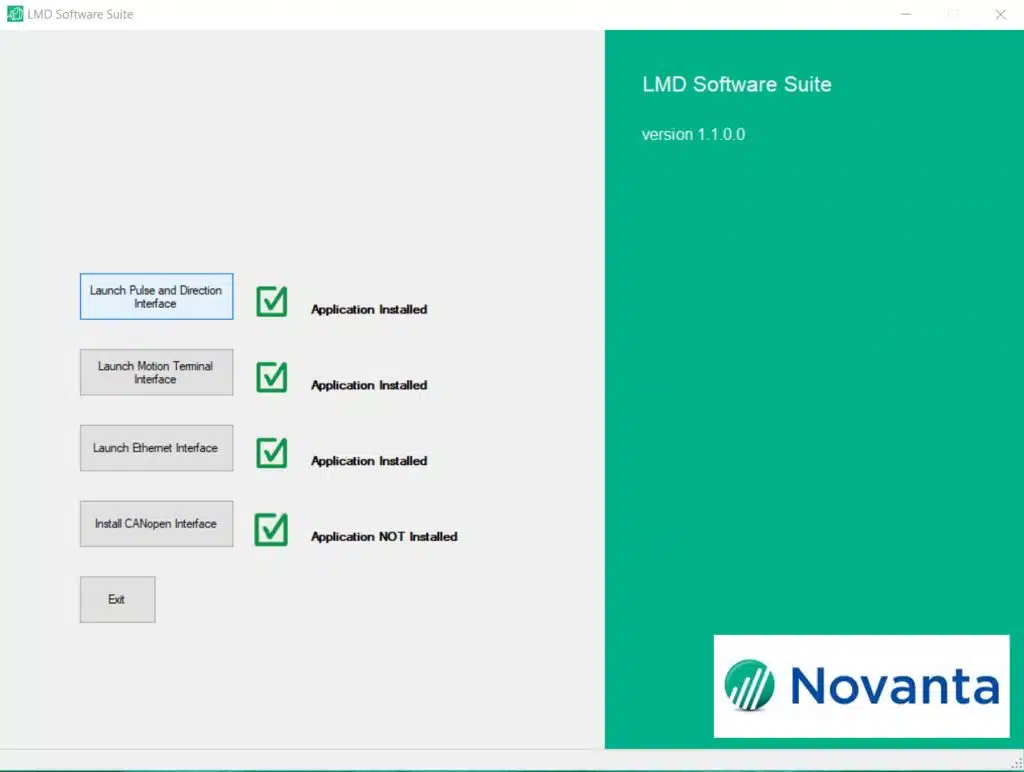

LMD Software Suite 1.1.0.0

Liberty* MDrive and Motion Module | Release date: 3/3/2022

Installation wrapper for the tools and utilities available to program and configure the Liberty* MDrive and Motion Module products.

  • Motion Terminal: ASCII terminal emulator/Programming environment for products using the MCode Operating System. All Motion Control and Ethernet products
  • Pulse/direction Interface: Used to set the configuration parameters for the Liberty MDrive Pulse/direction products. Features basic and advanced modes.
  • Ethernet TCP/IP Interface: Required to select the IP address and subnet mask, and to load an industrial application: Modbus/TCP, Ethernet/IP or Profinet IO.
  • CANopen Interface: used to set the NODE ID and BAUD on Liberty MDrive and CANOpen Motion Module products using the MD-CC501-001 or compatible PEAK/Phytec CAN adapter. Not required as all IMS CANopen products fully support CiA DS305: Layer Setting Services for commissioning the product.

*Previously Lexium

MDrive and MForce products

Programmable Motion Control

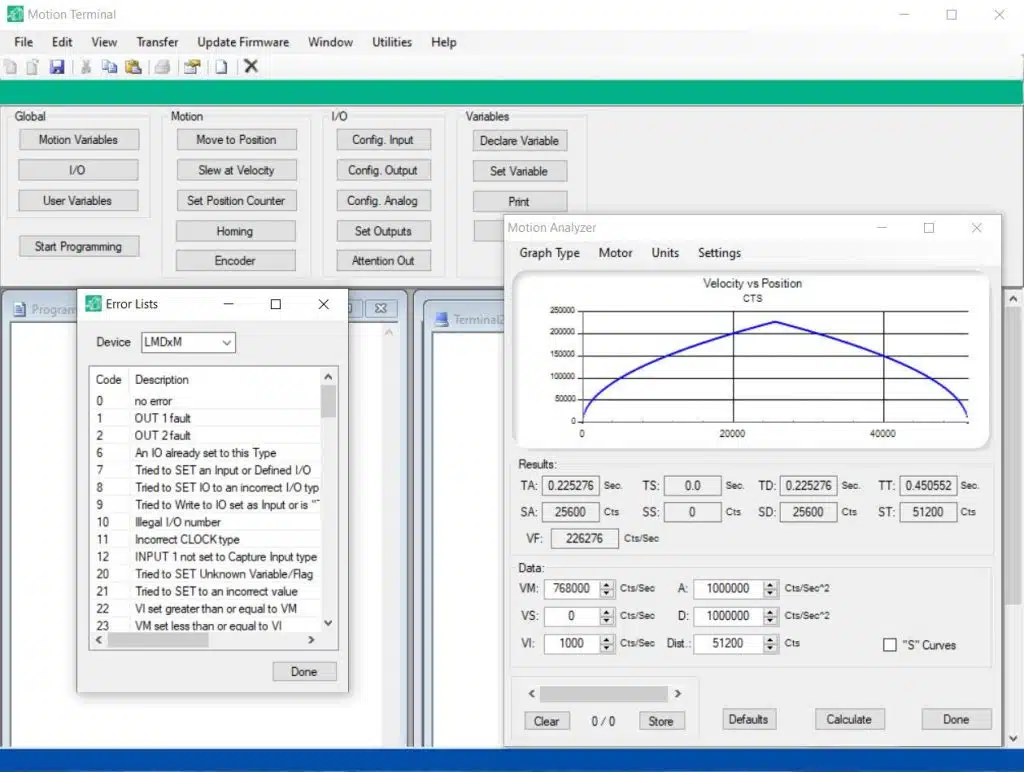

Integrated ASCII program editor and ANSI Terminal emulator. For use with MDrive and MForce Motion Control products. Motion Terminal is the next generation of the Motion Terminal  program enhanced with advanced features and functionality.

Applicability:

  • MDrive Motion Control
  • MForce Motion Control
  • MDrive Ethernet
Icon
5.1.3.7

IMS Terminal: deprecated version for use with older Windows 32 Operating Systems

Icon
4.4.6
Step/direction and Speed Control

For use with MDrive and MForce Step/direction and Speed Control products with an SPI communication interface. Update to improve compatibility with x64 Windows operating systems. Replaces IMS SPI Motor Interface 3.1.70.

Applicability:

  • MDrive and MForce Step/direction
  • MDrive Speed Control
Icon
4.0.2.0
CANopen

Description:
For use with MDrive and MForce CANopen units with a CANopen communication interface. Use of this tool requires the MD-CC500-000 USB to CANopen converter cable.

Applicability:

  • MDrive and MForce CANopen

For use with MDrive and MForce Step/direction and Speed Control products with an SPI communication interface. Update to improve compatibility with x64 Windows operating systems. Replaces IMS SPI Motor Interface 3.1.70.

Applicability:

  • MDrive and MForce Step/direction
  • MDrive Speed Control
Icon
3.54.3
