MFI1 MicroDrive CANopen

mdplus-certs

MForce MicrodDrive CANopen with standard features combines a CANopen motion controller supporting DS301 and DSP402 profiles with a high-resolution microstepping drive. High +12 to +48 VDC input voltage and an output current of 3.0 A RMS (4.0 A Peak).   Commissioning is accomplished using a free software interface or by using CAN in Automation standard Layer Setting Services (LSS).

Specifications

Specifications

General
Control TypeCANopen
Control InterfaceStep, direction and enable inputs
Driver TypeMicrostepping
Operating Temperature[°C] 2
California Residents – Click here for Proposition 65 warning
Electrical
Input Voltage[+VDC]+12 to +48
Output Current[A]3.0 (4.2)
Motion
Step Frequency[MHz] max2.5
Step Resolutions[steps/full step] 1 … 256
Mechanical

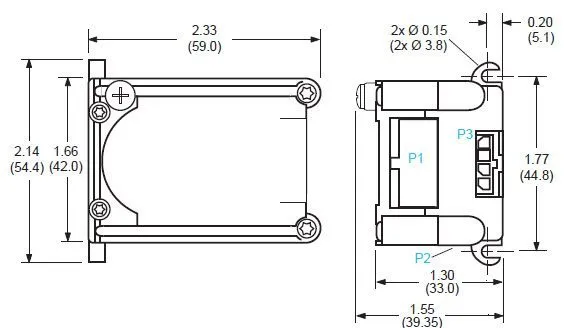

Mechanical dimensions

Part Builder

Part Number/Accessories

Recommended motors

NEMA 23 Stepper Motor
90 … 239 oz-in (64 … 169 N-cm) holding torque
NEMA 23 Stepper Motor
90 … 239 oz-in (64 … 169 N-cm) holding torque
NEMA 17Stepper Motor
32 to 75 oz-in (23 to 53 N-cm) holding torque
NEMA 14 Stepper Motor
12.5 oz-in (8.8 N-cm) holding torque
