Accessory
MD-CS620-000 Cordset
Part Number: MD-CS620-000
The MD-CS620-000 is a 4-position, B-coded M12 female with flying leads cable used to interface DC power to Liberty* MDrive products. Pre-wired shielded cables with straight M12 connector end for interfacing DC power. 10′ (3 m) M12 to flying leads cable.
*Previously Lexium
| Detail | Description |
|---|---|
| Type | Cordset |
| Function | Power Interface Cable |
| Applicable products | Liberty MDrive |
| Part number | MD-CS620-000 |

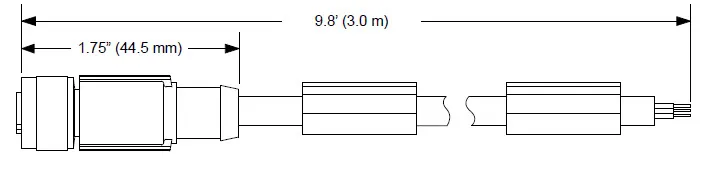

Detail Drawing
Connectivity Details
| Pin # | Signal | Color | Paired to (#) | Description |
|---|---|---|---|---|
| 1 | +V | Brown | () | + VDC power input |
| 2 | GND | White | () | Power supply return (Ground) |
| 3 | AUX V | Blue | () | +12 to +24 VDC Aux power supply |
| 4 | GND | Black | () | Power supply return (Ground) |
