Home > All Products > MDrive Intelligent Motors > Liberty MDrive Linear Motion Products > LMD23 NEMA 23 CANopen External Linear Actuator with M12 Connectors

Liberty MDrive®

LMD23 NEMA 23 CANopen External Linear Actuator with M12 Connectors

Compact  integrated motor  with CANopen CiA301 and CiA402. Feedback options include open loop, or closed loop with an incremental or multi-turn absolute encoder with hMTechnology.

  • Motor size: NEMA 23 (57 mm)
  • Holding Torque range:
  • Input voltage: +12 to +60 VDC
  • Specifications
  • Motor Performance
  • Part Number Builder
  • Downloads
  • Where to buy
  • Get support
  • Inquire about this product<
New to integrated motors? Learn how integrated motion devices can reduce the cost, size and complexity of your machine in this whitepaper. > Read more
  • Specifications
  • Motor & Mechanical
  • Documents & Downloads
  • Part Builder
  • Accessories
Menu
  • Specifications
  • Motor & Mechanical
  • Documents & Downloads
  • Part Builder
  • Accessories
No items found
3D Configurator

Specifications

General Specifications

General
Control type—CANopen
Communications interface—CAN Bus 2.0B
Communications features—CANopen DS301, DSP402
NEMA size—23 (57 mm)
Torque rangeoz-in (N-cm)
Operating temperature[°C] heatsink85
[°C] motor100
IP rating—IP65

California Residents – Click here for Proposition 65 warning

Electrical Specifications



Electrical
Input Voltage[+VDC]+12 to +60
Power Supply Current Requirement[A]3.5
Aux-Logic Supply Voltage[+VDC]12 … 24
Aux-Logic Supply Current[mA] max194

I/O Specifications

Programmable I/O
Signal Inputs: +5 to +24 VDC
Voltage Range[+VDC]5 … 24
Input Current[mA @ +5 VDC]8.7
Input Current[mA @ +24 VDC]14.6
Input Frequency[kHz]5
Isoation—Galvanic
Protection class—III
Analog Input (Not available on LMD models with absolute encoder)
Voltage Mode[0 … 5 VDC}0 … 5
Voltage Mode [0 … 10 VDC}0 … 10
Current Loop Mode[mA]0 … 20
Resolution[Bits]12
Isolation—None
Power Outputs
NumberOpen or closed loop2
Absolute encoder1
Voltage rating[+VDC]-24 … +24
Current rating[mA]-100 … +100 mA
Protection—over temp, short circuit, transient, over voltage, inductive clamp
Isolation—Galvanic
Signal Outputs: 1 – 5.5 mA
Voltage open-collector[+VDC]60
Voltage open-emitter[+VDC]7
Current open-collector[mA]5.5
Current open-emitter[mA]5.5
Isolation—Galvanic

Motion Specifications



Motion
Open Loop (No encoder or hMT/Encoder functions off)
Microstep resolution# of settings20
Range [steps/rev]200 … 51200
Counter type[32-bit]Position
Counter edge rate[MHz] (max.)5
Velocity range[steps/sec | RPM]± 2560000 | ± 3000
Velocity resolution[steps/sec]0.5961
Accel/Decel range[steps/sec2]1.5 X 109
Accel/Decel resolution[steps/sec2]90.9
Closed Loop (hMT/Encoder functions on)
Incremental encoder
Encoder typeInternal, magnetic
Encoder resolution[Lines / Edges]1000 / 4000
Multi-turn Absolute encoder
Encoder type Internal, magnetic
Data retentionon internal power30 days
with battery pack5 years
Common
Scaling[Encoder counts : Full step]20:1
Counter type[32-bit]Encoder
Encoder functions[hMTecnology OFF]Position maintenance
Find index
Stall detect
[hMTechnolgy ON]Anti-stall
Variable current control
Torque mode


Software Specifications




Software
CANopen
CiA Standards Compliance
Application LayerDS301: CANopen application layer and communication profile
ProfileDSP402: CANopen device profile for drives and motion control
ConnectivityDR303-1: Cabling and connector pin assignment
CommisioningDS305: CANopen layer setting services (LSS) and protocols
General features
Setup ParametersStorable to NVM
Transmit PDOs4 Dynamically Mappable
Receive PDOs4 Dynamically Mappable
Manufacturer Specific ObjectsI/O Configuration, Run/Hold Current
Modes of OperationProfile Position, Homing Mode, Profile Velocity, Profile Torque1, Cyclic Synchronous Position
Input functionsGeneral purpose, home, limit
Output functionsGeneral purpose, braking
1) Closed loop models with encoder only.

Motor & Mechanical

Motor Performance

Screw G

Screw A

Screw B

Screw D

Screw key
Screw G0.3750′ (9.525 mm) per revolution
Screw A0.20′ (5.08 mm) per revolution
Screw B0.167′ (4.233 mm) per revolution
Screw D0.0833′ (2.116 mm) per revolution

NOTE: Do not exceed the rated thrust limit of the nut being used:

  • General purpose nut: 60 lbs (27 kg)
  • Anti-backlash nut: 25 lbs (11 kg)

Motor Characteristics
SpecNotesValue
Maximum screw misalignment°±1
General purpose nut
Maximum thrustlbs60
kg27
Maximum repeatabilityin0.005
(mm) (0.127)
Anti-backlash nut
Maximum thrustlbs 25
kg11
Maximum repeatabilityin0.0005
mm 0.0127
Motor
Rotor inertiaoz-in-sec20.0025
kg-cm20.18
Weight (without screw)oz24.8
g703
Leadscrew Characteristics

Screw travel specifications

Travel per revolution
Screwinchesmm
Screw G0.3759.525
Screw A0.205.08
Screw B0.1674.233
Screw D0.08332.116
Travel per full step
Screwinchesmm
Screw G0.0018750.0476
Screw A0.0010.0254
Screw B0.0008350.0212
Screw D0.00041650.0106

Dimensional information

Dimensional information
in / mm
A3.0 to 24.0 / 77.5 to 610.0
in 0.1 / 0.25 increments
B0.50 / 12.7
C0.375 / 9.525

Nut specifications

General purpose nut

For applications not requiring backlash and wear compensation. Round flange shape.

Max Thrust: 25 lbs (11 kg)

Anti-backlash nut

For applications requiring backlash-free operation for high accuracy and low drag torque. Triangle flange shape.

Factory-preloaded: The anti-backlash nut ships pre-loaded from the factory. Should you need to remove it please read the assembly instructions.

Max Thrust: 5 lbs (2 kg)

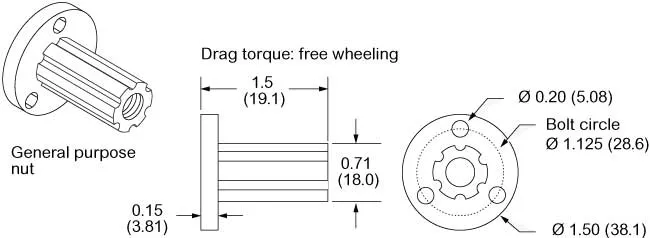

General purpose nut

For applications not requiring backlash and wear compensation. Round flange shape.

Max Thrust: 60 lbs (25 kg)

General Purpose Nut

Anti-backlash nut

For applications requiring backlash-free operation for high accuracy and low drag torque. Triangle flange shape.

Factory-preloaded: The anti-backlash nut ships pre-loaded from the factory. Should you need to remove it please read the assembly instructions.

Max Thrust: 25 lbs (11 kg)

Anti-backlash nut



End treatment options

End treatments
None—
SmoothØ 0.2362″ ±0.001
Ø 6mm ±0.003
Threaded Metric: M6 x 1.0mm
thread to within 0.03″/
0.76 mm of shoulder
UNC: 1/4-20 UNC-2A
thread to within 0.05″/
1.3 mm of shoulder

Need a custom leadscrew solution?

Custom screw ends

SEM offers numerous customization options for your lead screw. Contact us to learn more!

Leadscrew maintenance statement

While under optimal conditions lubrication interval is expected to occur approximately once every 1000 hours of service. Actual life will depend on application and environment. Based upon this, frequent inspections must be performed and a maintenance interval determined based on actual conditions.

Recommended lubricant: Dupont Krytox GPL 206

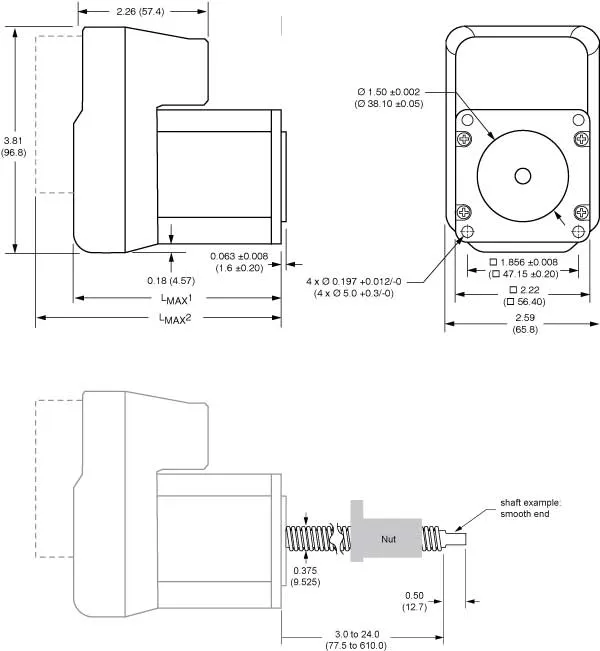

Mechanical/Dimensional Information


Liberty MDrive Linear Actuator NEMA 23 Dimensions

Documents & Downloads

3D Models

Click the 3D Configurator link below for corresponding product models.

3D Configurator
Firmware - Released
Not available for this product.

Hardware Manuals
Icon
LM57/LM85 CANopen with M12 circular connectors
August 2020
5.76 MB
Product Datasheets
Not available for this product.

Software Manuals
Icon
LMD CANopen CiA301 and CiA402 Implementation
October 2018
5.65 MB
User Interface Software
Icon
LMD Software Suite 1.1.0.0
1.0.1.9
4.92MB

Part Number Builder

Liberty MDrive Linear Actuator Part Builder

Accessories

Absolute Encoder Backup Battery pack
Mounting Hardware or Miscellaneous Accessory
MD-CS650-000 Cordset
Communications Interface Cable
MD-CS630-000 Cordset
I/O Interface Cable
MD-CS620-000 Cordset
Power Interface Cable
PLG-M12TP bus termination (resistor) plug
I/O Interface Cable
MD-CS660-000 Y-Cable for CANopen
Communications Interface Cable
MD-CC502-000 Communication Converter Kit
USB to CANopen
